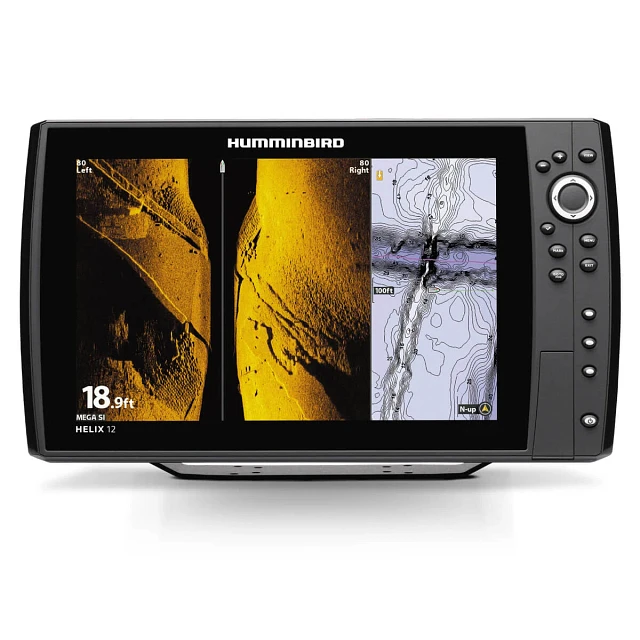

HELIX 12 HW MSI GPS G2N

HELIX 12 HW MEGA SI GPS G2N

Item # 411280-1
$2,499.99
Sorry this product is no longer being sold.
WARNING: Important information for California residents.

Overview

The HELIX 12 HW MEGA SI GPS G2N features a large 12.1" display with LED backlight, MEGA Side Imaging, MEGA Down Imaging and Dual Spectrum CHIRP Sonar. Internal GPS with built-in Humminbird Basemap and AutoChart Live will help you find your way, while Bluetooth and Ethernet networking capabilities make sure that you'll have access to access the power of the One-Boat Network™.

FEATURES

  • MEGA Side Imaging: Unprecedented under water clarity of coverage out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more output than standard Side Imaging Sonar.
  • MEGA Down Imaging: Unprecedented under water clarity of coverage up to 125 feet below your boat. You'll unlock new details with up to 3X more output than standard Down Imaging Sonar.
  • Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for maximum detail.
  • Humminbird Basemap Built-in: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. See depth contours, even bottom hardness and vegetation layers come to life on screen as you drive your boat.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily network multiple Humminbird fish finders and connect to products from the One-Boat Network™, including Minn Kota i-Pilot Link™ trolling motors and Humminbird CHIRP radar.
  • Bluetooth®: Enable features like wireless software updates and map transfers from the Humminbird FishSmart™ App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).
  • LakeMaster® Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you'll have all the tools you need to make every moment count.
  • Navionics® Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
  • Includes control head, transducer, mounting hardware, power cable, gimbal mounting bracket and unit cover.
  • 2-Year Limited Warranty

SPECS

Model HELIX 12 HW MEGA SI GPS G2N
Product Code 411280-1
Series HELIX
UPC 0082324054600
As shown MSRP
$2,499.99
Display Size - Diagonal 12.1 in
Display Pixel Matrix 1280H x 800V
Transducer Included XM 9 H1012 HW MSI G2N
Compatible With Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, AIS, NMEA 2000, Radar, AutoPilot
Features Networking, Down Imaging, Built In GPS, Bluetooth, Side Imaging, Dual Spectrum CHIRP, Built In Mapping, MEGA Imaging
Memory Card Slot Dual SD
Sonar-Standard Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
Sonar-Coverage 20°, 60°, (2) 86° & (2) 55° @ -10dB (Total of 180°)
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported High (130-250 kHz), 50/200 (28-75/130-250 kHz), Med (75-155 kHz), 83/200 (75-155/130-250 kHz), Low (28-75 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar 1,500 ft (standard transducer), 3,500 ft (optional 50 kHz), 3,500 ft (optional Airmar CHIRP)
CHIRP - Imaging Frequencies Supported 800 kHz (790-850 kHz), 455 kHz (420-520 kHz), MEGA 1.2 MHz (1.125-1.300 MHz)
Depth-Down Imaging 400 ft (455 kHz), 125 ft (MEGA & 800 kHz)
Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 250 ft (MEGA & 800 kHz)
Interface Keypad Control
Power Draw 1.75 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 1000 Watts
Power Output RMS 1000 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 14.86 in W x 8.83 in H x 4.25 in D
Mount-Optional In-Dash Mounting Kit
Mount-Optional Size 14.86 in W x 8.52 in H x 1.36 in D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 2,500, 47, 50/20,000
360 Imaging Compatibility Yes
MEGA Live Compatibility Yes
Humminbird Basemap Included
LakeMaster Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum+ Compatibility Yes
Platinum Compatibility Yes
Minn Kota i-Pilot Link Compatibility Yes
Minn Kota Talon Shallow Water Anchor Compatibility Yes
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Autopilot Compatibility Yes
Heading Sensor GPS Compatibility Yes
NMEA2000 Optional
Target Separation 2.5 in
Upgradable Software Yes
View Preset Keys Yes
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Type Color TFT
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
Warranty Two-Year Warranty
